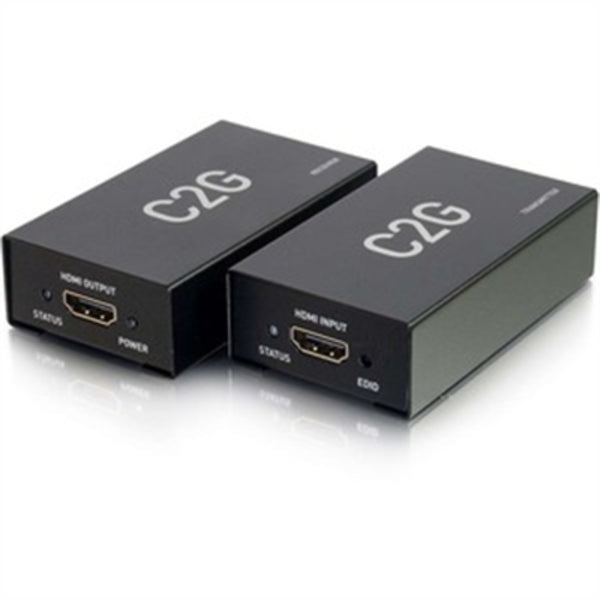

C2g Hdmi Over Cat5/cat6 Extender

General Information

Manufacturer: C2G
Manufacturer Part Number: 60180
Brand Name: C2G
Product Name: HDMI Over Cat5/6 Extender up to 164ft (50m)
Marketing Information: The HDMI Over Cat5/6 Extender is ideal for extending digital video and audio, making it a great solution for digital signs, schools, churches, trade show presentations, or any application where the HDMI source is farther than 50 feet from the display. The extender can also send HDMI signals over existing Cat5 or Cat6 cable infrastructure for cost-effective reliability, while maintaining high performance quality.

Convenience
This solution is able to extend HDMI video and audio up to 164 feet and requires the use of a single Cat5 or Cat6 patch cable. With no drivers or software to install, the HDMI over Cat5/6 Extender provides total plug and play convenience. Simply connect the transmitter to the video source, the receiver to the display, and extend with a single category cable for quality video and audio.

Performance
Supporting resolutions up to 1080p at 60Hz and delivering quality sound allows the HDMI extender to meet the requirements for high performance applications and adds greater functionality to displays.
Product Type: Video Extender Transmitter/Receiver

Technical Information

Connectivity Technology: Wired
Number of Input Devices Supported: 1
Number of Output Devices Supported: 1
Maximum Operating Distance: 164.04 ft

Video

Graphics Modes: Full HD
Maximum Video Resolution: 1920 x 1080

Interfaces/Ports

Network (RJ-45): Yes
HDMI In: Yes
HDMI Out: Yes
Number of Network (RJ-45) Ports: 2
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1

Media & Performance

Media Type Supported: Twisted Pair
Twisted Pair Cable Standard: Category 6

Physical Characteristics

Color: Black
Transmitter Height: 0.94"
Transmitter Width: 1.93"
Transmitter Depth: 3.33"
Transmitter Weight (Approximate): 1.40 lb

Miscellaneous

Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Country of Origin: China

Warranty

Limited Warranty: 3 Year
