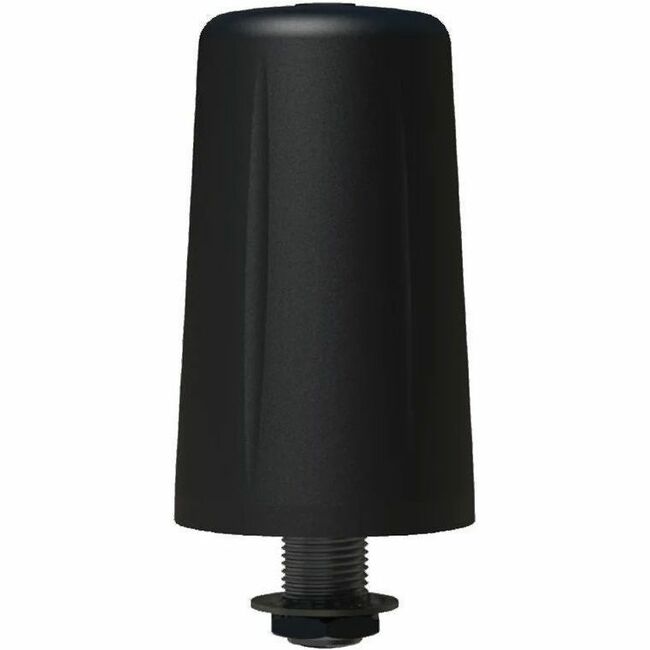

Panorama Antennas LPB-6-60 Antenna

• Cost Effective 2G/3G/4G/5G Coverage
• Integrated Low Loss Cable
• Robust but Subtle Design

The LPB-6-60 antenna is a cost effective omni-directional panel mount antenna for 4G/3G/2G and 5G devices from 617-960/1710-6000MHz and is suitable for external or internal installation.

The LPB-6-60 is supplied with integrated 5mm double shielded CS29 coaxial cable and is available with a wide variety of connectors fitted.

This antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.

The LPB-6-60 requires a conductive ground plane of >300mm (1') diameter for optimal performance or it can be bracket mounted (p/n B4BE-6-60).

• Delivers?enhanced performance at 617MHz to 960MHz frequency
• Provides connectivity to your cellular network, making it perfect for usage
• Eases up the installation procedure thanks to its 360-degree horizontal pattern
• Antenna can be mounted as external
