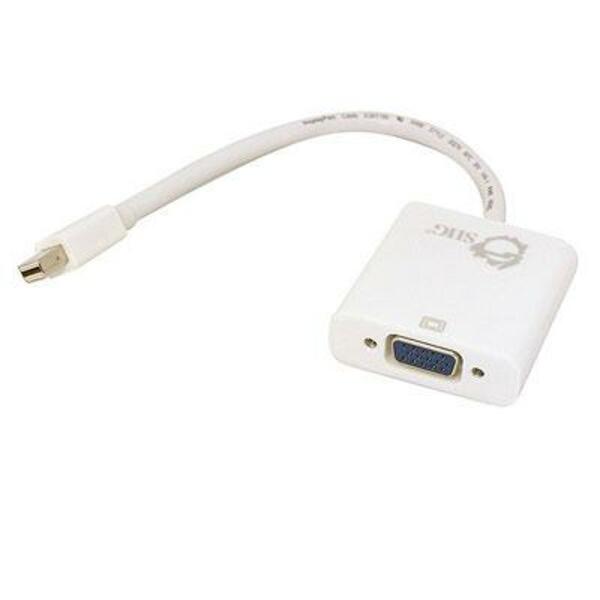

Siig Mini Displayport To Vga Adapter Converter

General Information

Manufacturer: SIIG, Inc
Manufacturer Part Number: CB-DP0R11-S1
Brand Name: SIIG
Product Name: Mini DisplayPort to VGA Adapter Converter
Marketing Information:

• Compatible with Intel Thunderbolt
• Connect the latest mini DisplayPort equipped computer systems to VGA displays
• Compliant with DisplayPort standards, supporting 1.62Gbps and 2.7Gbps
• Supports 1080p and PC graphics resolution up to 1920x1200
• Supports 8-bit per color RGB color format
• Supports full DisplayPort link training
• Supports EDID and MCCS pass-through
• Automatic monitor plug and unplug detect for VGA output
• Compact design with 8KV ESD protection

Packaged Quantity: 1
Product Type: Video Cable

Technical Information

Cable Type: Mini DisplayPort/VGA
Connector Type on First End: Mini DisplayPort 1.1a Digital Audio/Video - Male
Connector on First End Details: 1 x 20-pin Mini DisplayPort 1.1a Digital Audio/Video - Male
Connector Type on Second End: HD-15 - Female
Connector on Second End Details: 1 x 15-pin HD-15 - Female
Connector Plating: Gold
Conductor: Copper
Device Supported: Notebook
Device Supported: Video Device

Physical Characteristics

Product Color: White
Weight (Approximate): 0.08 lb

Miscellaneous

Additional Information:

• Compatible with Intel Thunderbolt
• Connect the latest mini DisplayPort equipped computer systems to VGA displays
• Compliant with DisplayPort standards, supporting 1.62Gbps and 2.7Gbps
• Supports 1080p and PC graphics resolution up to 1920x1200
• Supports 8-bit per color RGB color format
• Supports full DisplayPort link training
• Supports EDID and MCCS pass-through
• Automatic monitor plug and unplug detect for VGA output
• Compact design with 8KV ESD protection

Certifications & Standards:

• CE
• FCC

Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China

Warranty

Limited Warranty: 3 Year
