StarTech.com 3-Port DisplayPort 1.2 Splitter, DisplayPort to 3x DP Multi-Monitor Adapter, Dual 4K 30Hz and 1080p Computer MST Hub, Windows

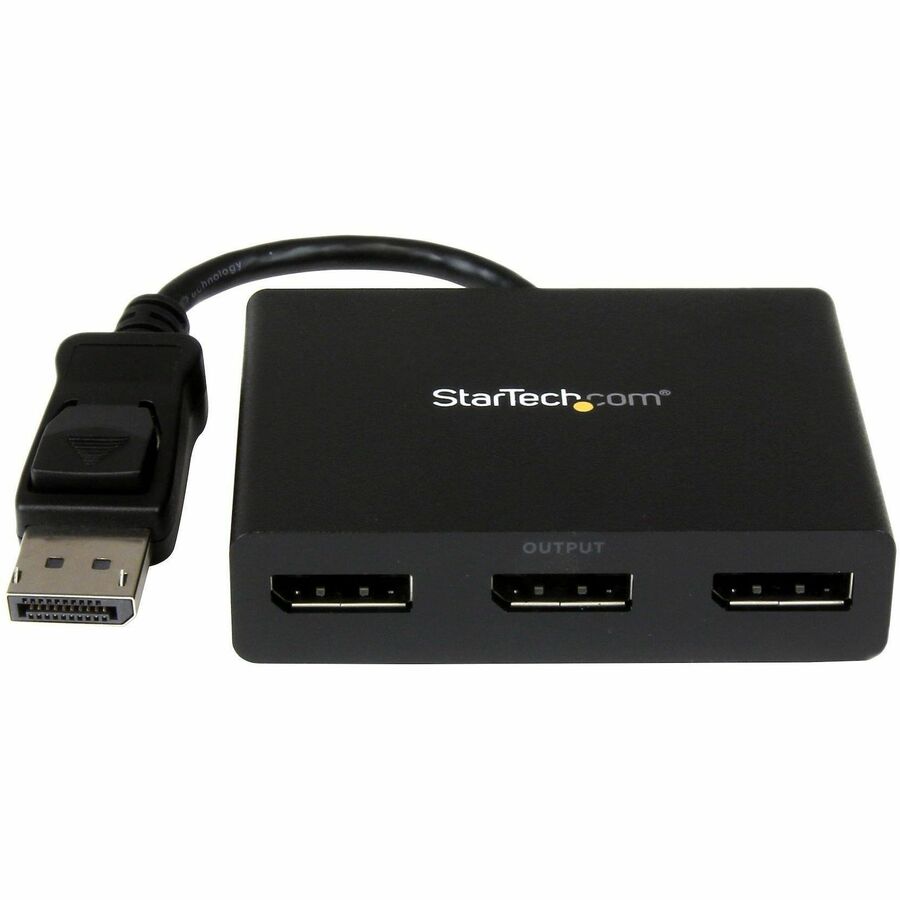

This MST hub lets you connect three monitors to your DisplayPort™ (DP) 1.2 equipped Windows® laptop or desktop.

Increase productivity with multiple screens

The newest generations of computers are more portable than ever, which often means that you're left with fewer video outputs and smaller integrated screens. ThisMST hubsolves both of these problems by letting you connect three additional displays to your computer, which makes multitasking much easier.

Connect to any display

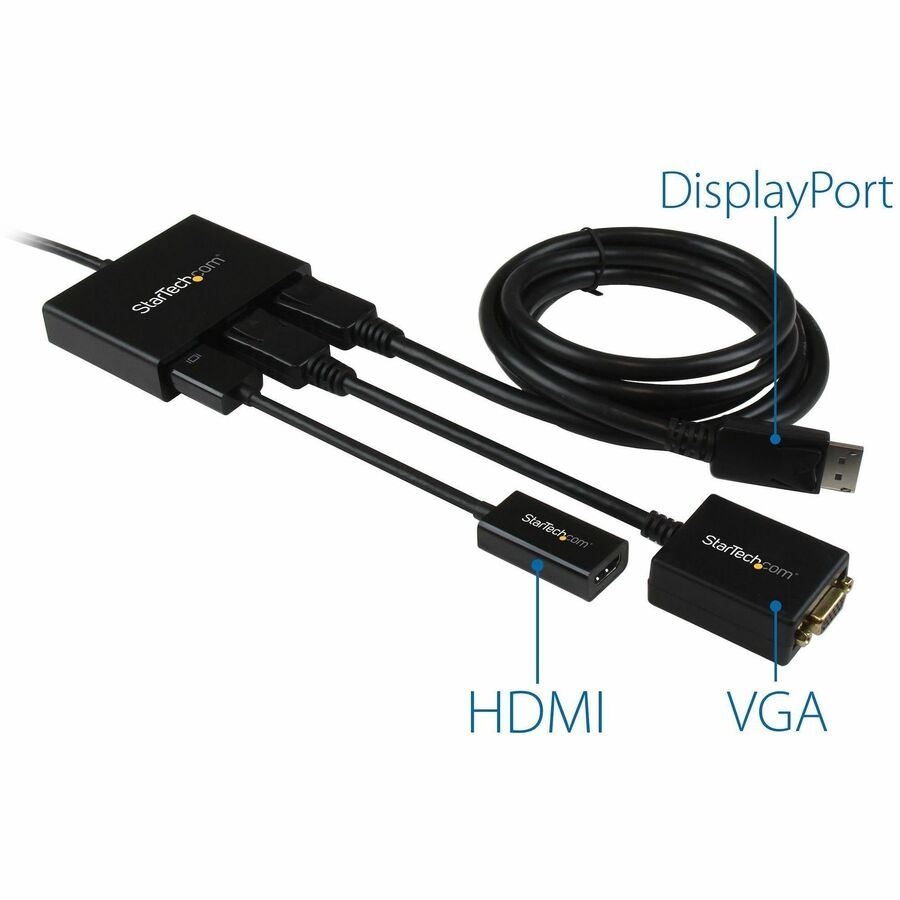

With the MST hub, you can use DisplayPort video adapters and cable adapters that enable you to connect HDMI, VGA or DVI displays. This ensures your MST hub will be compatible with virtually any television, monitor or projector. This MST hub is VESA and DisplayPort certified to support DP 1.2 enabled systems, for seamless integration with your existing video equipment.

Configure your displays for any environment

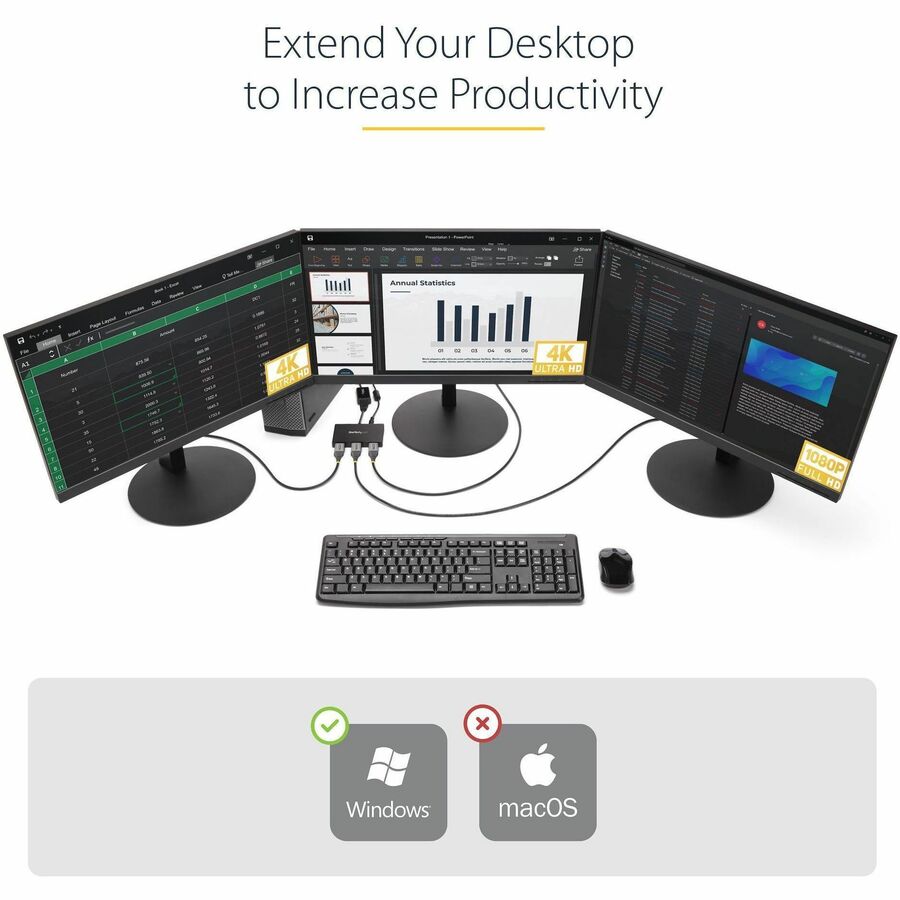

Using the MST hub, you can extend your desktop onto additional monitors and stream independent content to each display giving you the freedom to multitask and increase your productivity. You can also mirror the same image onto multiple displaysfor remote viewing applications such as digital signage.

Enjoy amazing video quality, without draining system resources

MST technology uses your existing video card to minimize the use of system resources while delivering Ultra HD 4K resolutions. This unprecedented performance makes MST perfect for high-resolution applications such as graphic design, gaming and medical imaging.

Note: When using a DisplayPort 1.1 video card the MSTDP123DP will act as splitter, automatically mirroring your video source across all displays. Resolution limitations apply.

The MSTDP123DP supports plug-and-play installation for a hassle-free setup, and is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: MST shares 21.6Gbps across all attached displays. Higher resolutions can restrict the available bandwidth with the remaining ports, please see our guideline below for determining an ideal resolution for your setup.Certain graphics adapters have limited MST support and will only output to three displays in total. If more than three monitors are attached the fourth will be disabled.

Average Resolution Bandwidth Allocation

1920x1080 (High-definition 1080p) @60hz - 22% 1920x1200 @60hz - 30% 2560x1440 @60hz - 35% 2560x1600 @60hz - 38% 3840 x 2160 (Ultra HD 4K) @30hz - 38%

Note: Exceeding 100% will reduce functionality.

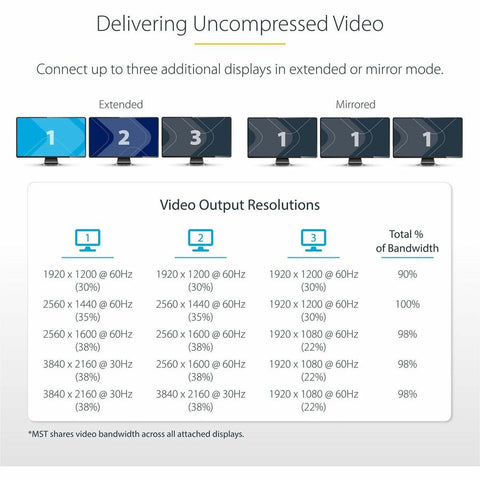

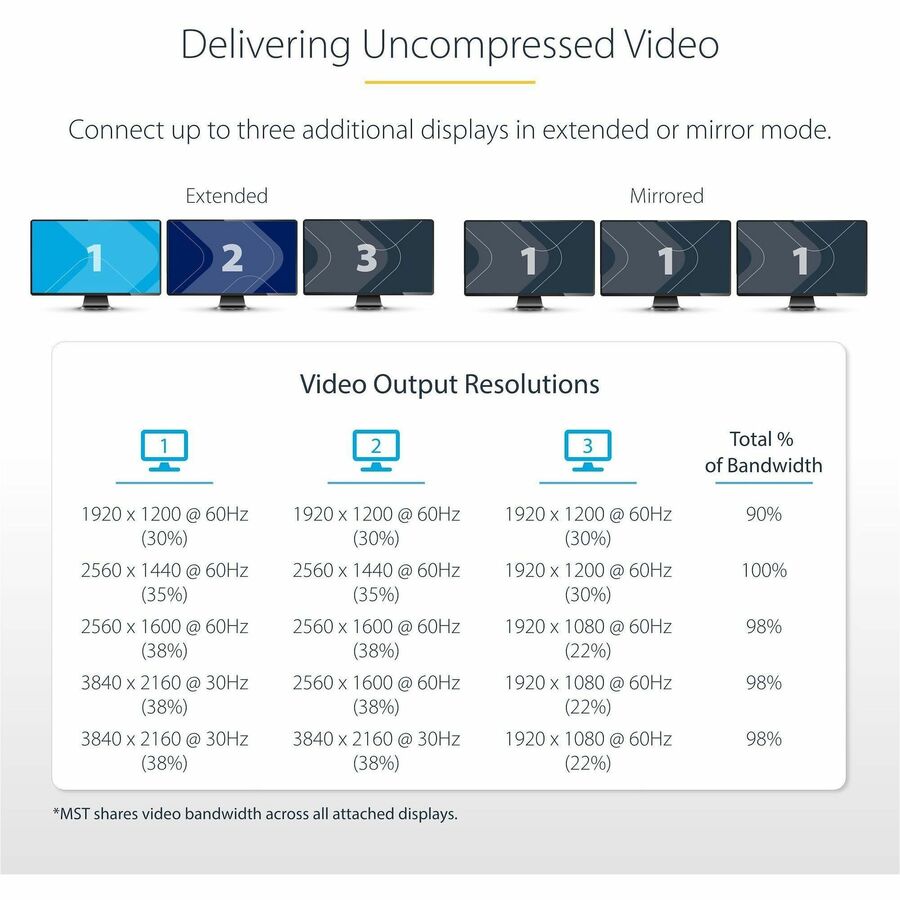

Examples of Supported Resolution Configurations Screen 1 Resolution Screen 2 Resolution Screen 3 Resolution Total % of Bandwidth 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 1920x1200 @60hz (30%) 90% 2560x1440 @60hz (35%) 2560x1440 @60hz (35%) 1920x1200 @60hz (30%) 100% 2560x1600 @60hz (38%) 2560x1600 @60hz (38%) 1920x1080 @60hz (22%) 98% 3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 1920x1080 @60hz (22%) 98% 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) 1920x1080 @60hz (22%) 98%

Examples of Unsupported Resolution Configurations Screen 1 Resolution Screen 2 Resolution Screen 3 Resolution Total % of Bandwidth 2560x1600 @60hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 106% 3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 1920x1200 @60hz (30%) 106% 3840x2160 @30hz (38%) 2560x1600 @60hz (38%) 2560x1440 @60hz (35%) 111% 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) 3840x2160 @30hz (38%) 114%

More from the Manufacturer

• MULTI MONITOR ADAPTER FOR WINDOWS: Triple DisplayPort MST hub drives up to 3x DisplayPort monitors in extended or duplicate mode using a DP port on Windows desktop PCs or laptops
• Not compatible with macOS
• DISPLAY RESOLUTION: Triple monitor DP MST hub supports resolutions up to 2x 4K 30Hz + 1x 1080p 60Hz on three monitors or three ultrawide displays up to 2560x1080 60Hz
• COMPATIBILITY: 3-Port DisplayPort MST video splitter works with laptops, computers or desktop graphics cards
• Requires host system with DP 1.2/HBR2/MST or later from HP, Dell & Lenovo and AMD, Nvidia & Intel video cards
• INCREASE PRODUCTIVITY: Increase productivity by extending your desktop at your workstation in the office/home office
• MST technology uses your GPU/video card performance to deliver uncompressed video and use minimal system resources
• EASY TO USE: Triple monitor adapter natively supports 3x DP monitors; Works w/Windows only and provides an easy driverless setup

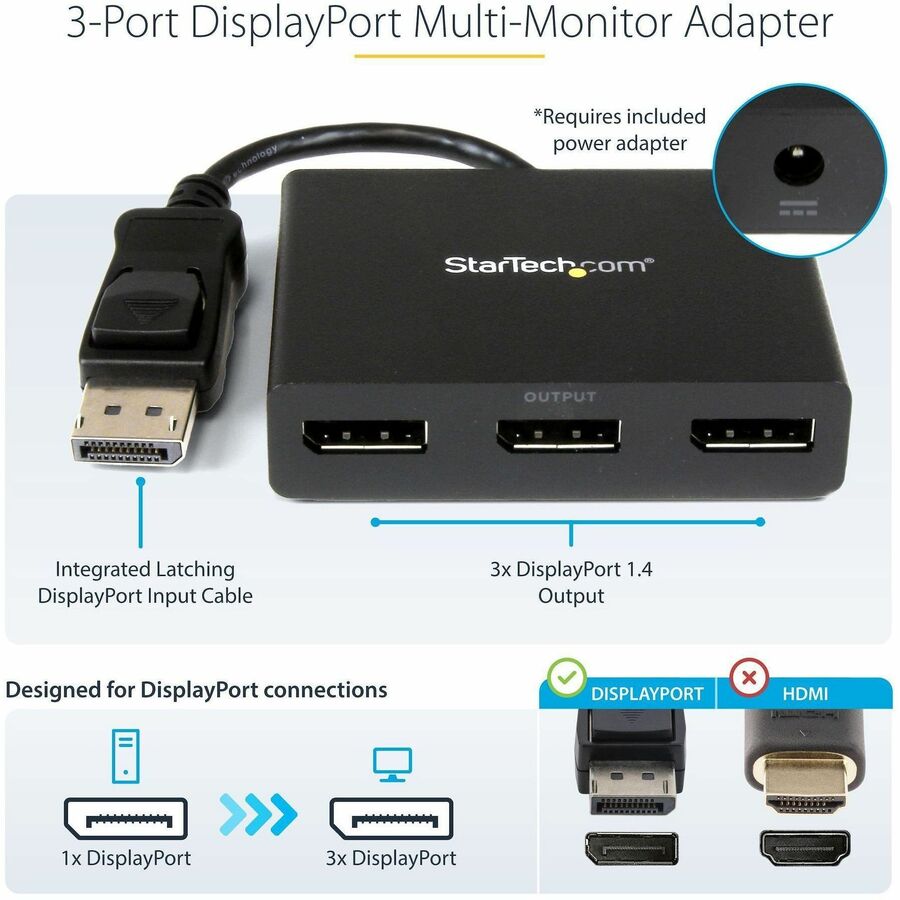

• Latching DisplayPort connector ensures a reliable connection and prevents accidental disconnection

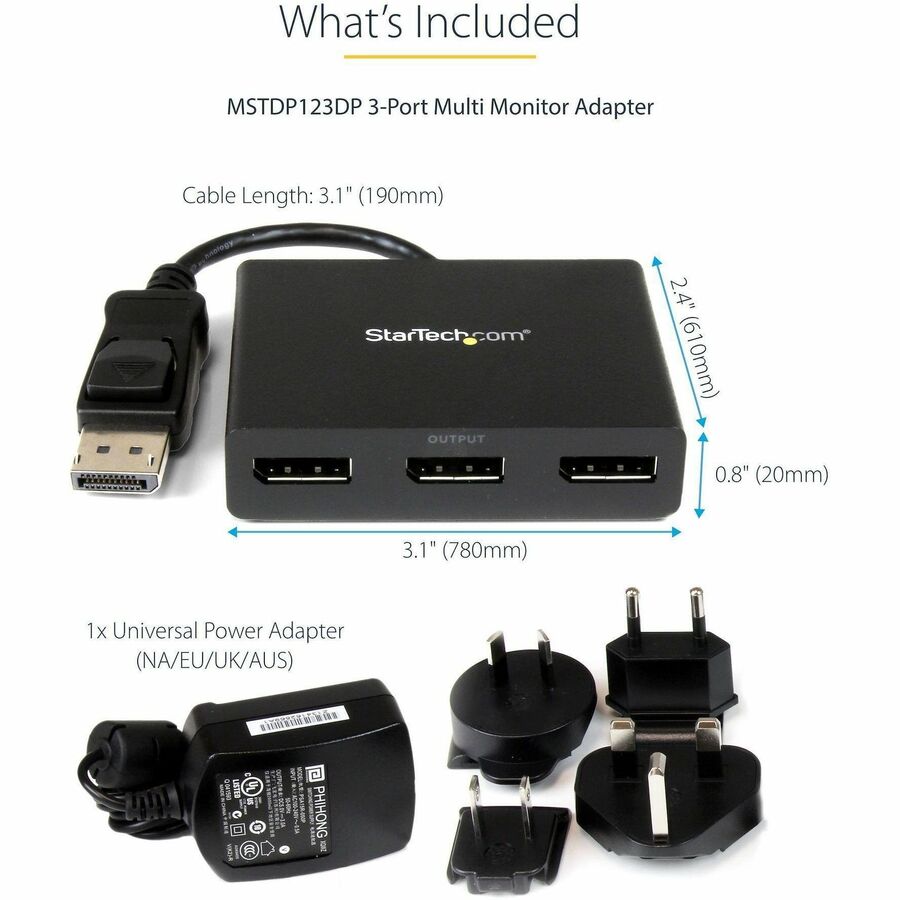

• CONVENIENCE: MST (multi-stream transport) hub is equipped with a built-in 5.5" (14cm) cable for video (DisplayPort) and an AC power adapter
• Supports LPCM digital audio
• GPU CAPABILITIES: Please verify maximum number of displays supported by your GPU; Some GPU chips (such as Intel HD Graphics) are only capable of supporting a maximum of three displays (laptop screen may be disabled when connected to three monitors)
